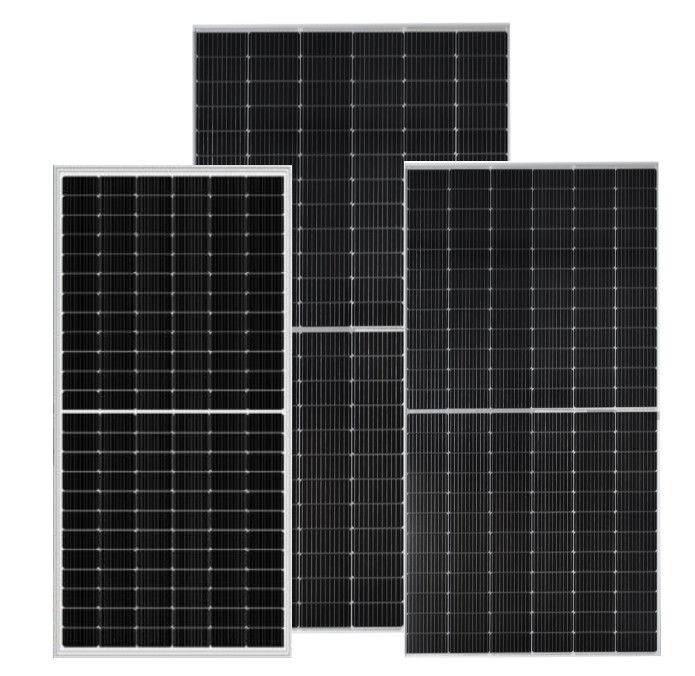

Name: High Efficiency 500W Monocrystalline Solar Panel for Home and Off-Grid System 500wSolarPanel ,SolarPower ,OffGridSolar ,MonocrystallinePanel ,SolarSystemKit ,RenewableEnergy
Brand: Helith Technology (Guangzhou) Co., Ltd.
SKU: 500w Solar Panel
Price: 263.00 USD
Availability: InStock

Home > products > Monocrystalline PV Solar Panel >

High Efficiency 500W Monocrystalline Solar Panel for Home and Off-Grid System 500wSolarPanel ,SolarPower ,OffGridSolar ,MonocrystallinePanel ,SolarSystemKit ,RenewableEnergy

Place of Origin:

China

Brand Name:

HelithTech

Certification:

IEC 62133-2

Model Number:

500w Solar Panel

Request A Quote

Product Details

Solar Cell(Type/Size):

MONO(182mm)

Solar Cells Number:

132pcs(6*22)

Dimensions:

2094x1134x35mm

Weight:

26.2Kg/Pcs

Weigh Structure:

3.2 Glass + EVA Film

Frame:

Anodized Aluminum EVA Film +

Cable Cros Section Size:

4.0mm2,(+)300mm/（-）400mm

Mechanical Load:

Front 5400Pa/Back 2400Pa

Packing Number:

31Pcs/Pallet

Packing Volume:

3.100Cbm/Pallet

40' Container:

682Pcs

Payment & Shipping Terms

Minimum Order Quantity

700 Pcs

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

chase@greatpower.net

86--18210433140

Contact Now

Product Description

High Efficiency 500W Monocrystalline Solar Panel for Home and Off-Grid System (500wSolarPanel ,SolarPower ,OffGridSolar ,MonocrystallinePanel ,SolarSystemKit ,RenewableEnergy)

Product Name:

500W Monocrystalline PERC Solar Panel

Comprehensive Certificates

IEC61215, IEC61730

ISO9001: 2015 Quality management systems

ISO45001: Environmental management systems

ISO45001:2018 Occupational health and safety management systems

正在上传...

Specifications

Solar Cell(Type/Size)	MONO(182mm)
Solar Cells Number	132pcs(6*22)
Dimensions	2094x1134x35mm
Weight	26.2Kg/Pcs
WeighStructure	3.2 Glass + EVA film +
Frame	Anodized Aluminum EVA film +
Cable Cros Section Size	4.0mm2,(+)300mm/(-)400mm
Mechanical Load	Front 5400Pa/Back 2400Pa
Packing Number	31Pcs/Pallet
Packing Volume	3.100Cbm/Pallet
40' container	682Pcs

ElectricalParameters at STC

Module Type	500P /132
Rate Maximum Power( Pmax/W)	500
Module Efficiency(%)	21.10
Open Circuit Volatge(Voc/V)	45.65
Short Circuit Current(lsc/A)	13.92
Voltage at Pmax(Vmp/V)	38.33
Current at Pmax(lmp/A)	13.05
