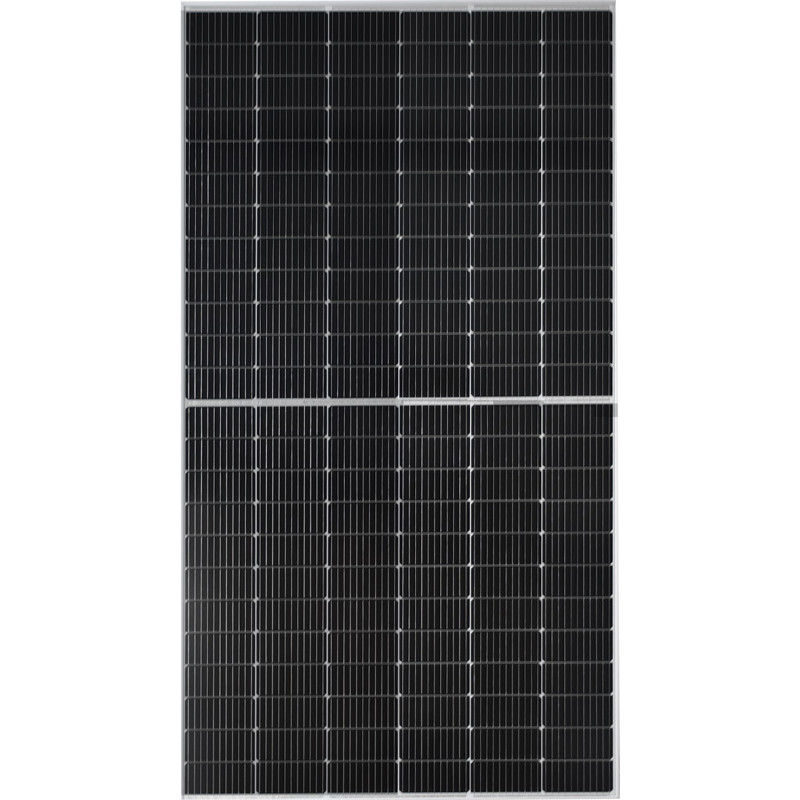

Name: Black Monocrystalline PV Solar Panel 3.1Cbm For Household System
Brand: Helith Technology (Guangzhou) Co., Ltd.
SKU: 500w Solar Panel
Price: 263.00 USD
Availability: InStock

Home > products > Monocrystalline PV Solar Panel >

Black Monocrystalline PV Solar Panel 3.1Cbm For Household System

Black Monocrystalline PV Solar Panel

Monocrystalline PV Solar Panel 3.1Cbm

Household Black Monocrystalline Solar Panels

Place of Origin:

China

Brand Name:

HelithTech

Model Number:

500w Solar Panel

Request A Quote

Black Monocrystalline PV Solar Panel 3.1Cbm For Household System

Product Details

Solar Cell(Type/Size):

MONO(182mm)

Solar Cells Number:

132pcs(6*22)

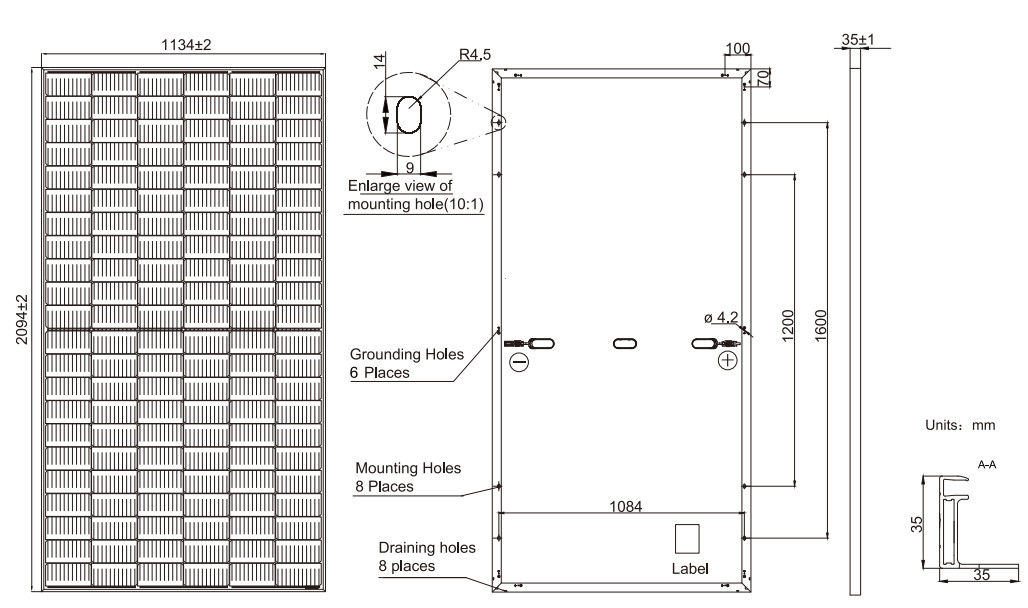

Dimensions:

2094x1134x35mm

Weight:

26.2Kg/Pcs

Weigh Structure:

3.2 Glass + EVA Film

Frame:

Anodized Aluminum EVA Film +

Cable Cros Section Size:

4.0mm2,(+)300mm/（-）400mm

Mechanical Load:

Front 5400Pa/Back 2400Pa

Packing Number:

31Pcs/Pallet

Packing Volume:

3.100Cbm/Pallet

40' Container:

682Pcs

Payment & Shipping Terms

Minimum Order Quantity

700 Pcs

Half Cut Monocrystalline PV Solar Panel Practical Multiscene

Get Best Price

Durable Monocrystalline PV Solar Panel Lightweight For Residential

Get Best Price

Black Monocrystalline PV Solar Panel 3.1Cbm For Household System

Get Best Price

600P-156 Monocrystalline PV Solar Panel Module Type 14.10 Lsc Aluminum Frame

Get Best Price

86--18210433140

chase@greatpower.net

86--18210433140

Contact Now

Product Description

2094x1134x35mm Solar Panel with Packing Volume 3.1Cbm/Pallet for household system

Comprehensive Certificates

IEC61215, IEC61730

ISO9001: 2015 Quality management systems

ISO45001: Environmental management systems

ISO45001:2018 Occupational health and safety management systems

正在上传...

Specifications

Solar Cell(Type/Size)	MONO(182mm)
Solar Cells Number	132pcs(6*22)
Dimensions	2094x1134x35mm
Weight	26.2Kg/Pcs
WeighStructure	3.2 Glass + EVA film +
Frame	Anodized Aluminum EVA film +
Cable Cros Section Size	4.0mm2,(+)300mm/(-)400mm
Mechanical Load	Front 5400Pa/Back 2400Pa
Packing Number	31Pcs/Pallet
Packing Volume	3.100Cbm/Pallet
40' container	682Pcs

ElectricalParameters at STC

Module Type	500P /132
Rate Maximum Power( Pmax/W)	500
Module Efficiency(%)	21.10
Open Circuit Volatge(Voc/V)	45.65
Short Circuit Current(lsc/A)	13.92
Voltage at Pmax(Vmp/V)	38.33
Current at Pmax(lmp/A)	13.05
