Name: Rechargeable Batteries 3.7V Li Ion Battery GP603450 3000mAh 3.7V 1S1P
Brand: Helith Technology (Guangzhou) Co., Ltd.
SKU: GP603450
Price: 263.00 USD
Availability: InStock

Home > Products > Lithium Battery Module >

Rechargeable Batteries 3.7V Li Ion Battery GP603450 3000mAh 3.7V 1S1P

Place of Origin:

China

Brand Name:

HelithTech

Certification:

GB/T36276 IEC62619 IEC62933 IEC 61000 UL1973 UL9540A UL9540

Model Number:

GP603450

Request A Quote

Product Details

Rated Capacity:

1200mAh

Nominal Voltage:

3.7V

Delivery Voltage:

≥3.8V

Limited Charging Voltage:

4.2V

Recommendation Charge Current:

0.2C

End Of Discharge Voltage:

2.75 V

Initial Impedance:

≤ 180mΩ

Payment & Shipping Terms

Minimum Order Quantity

100

Rechargeable Batteries 3.7V Li Ion Battery GSP104060 3000mAh 3.7V 1S1P

Get Best Price

Rechargeable Batteries 3.7V Li Ion Battery GSP052535 3.7V 400mAh+PCM Battery

Get Best Price

Rechargeable Batteries 3.7V Li Ion Battery GSP104060 3000mAh 3.7V 1S1P

Get Best Price

50x50x10mm Lithium Battery Module DC 3.3V-5V With I2C UART Communication Interface

Get Best Price

86--18210433140

chase@greatpower.net

86--18210433140

Contact Now

Product Description

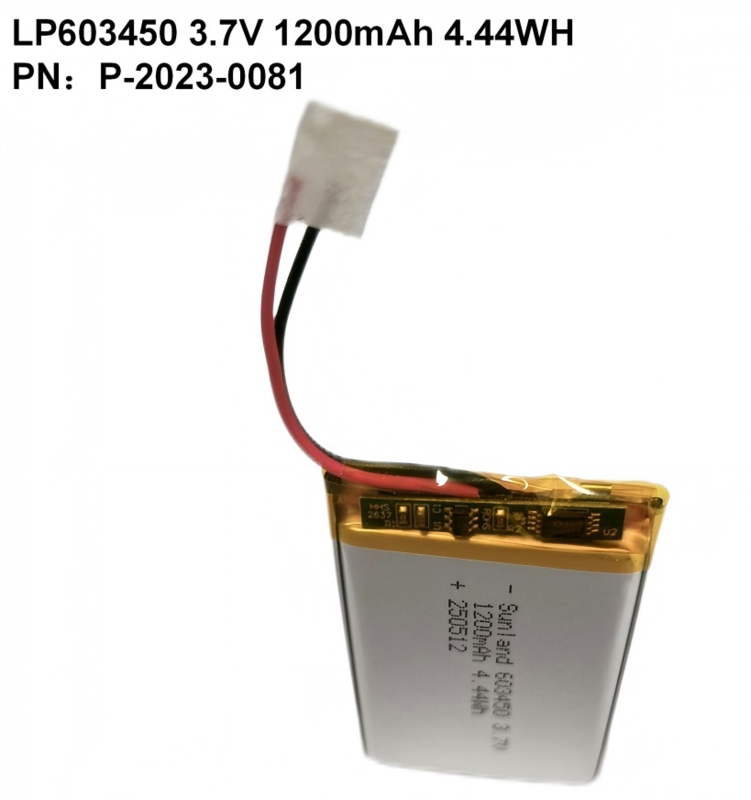

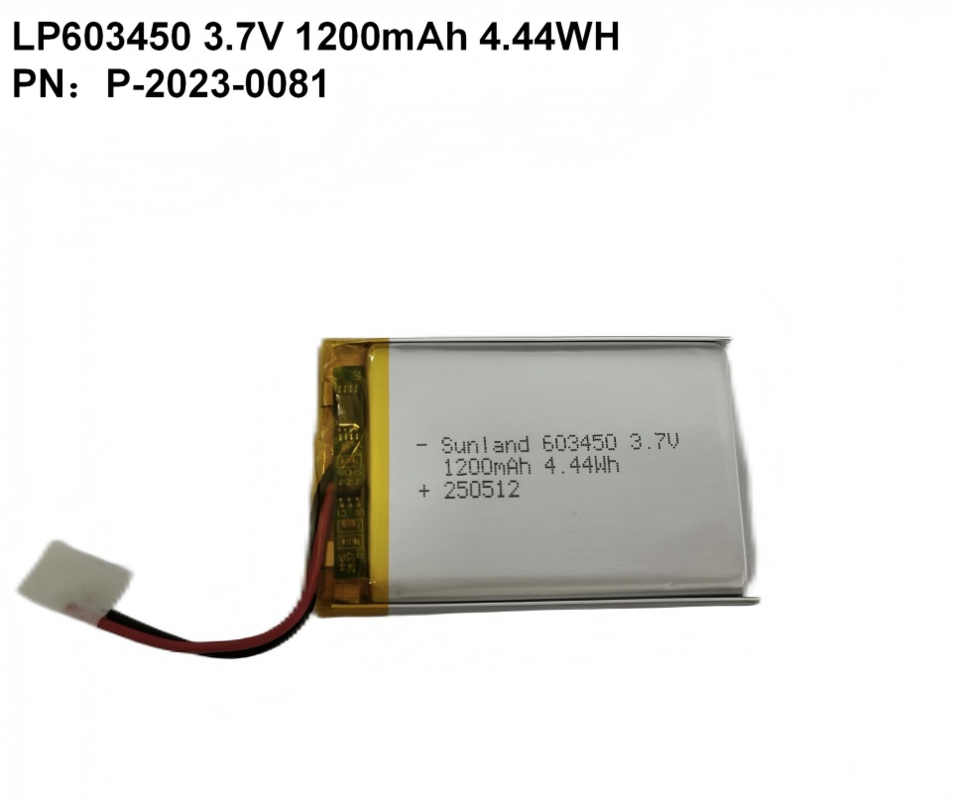

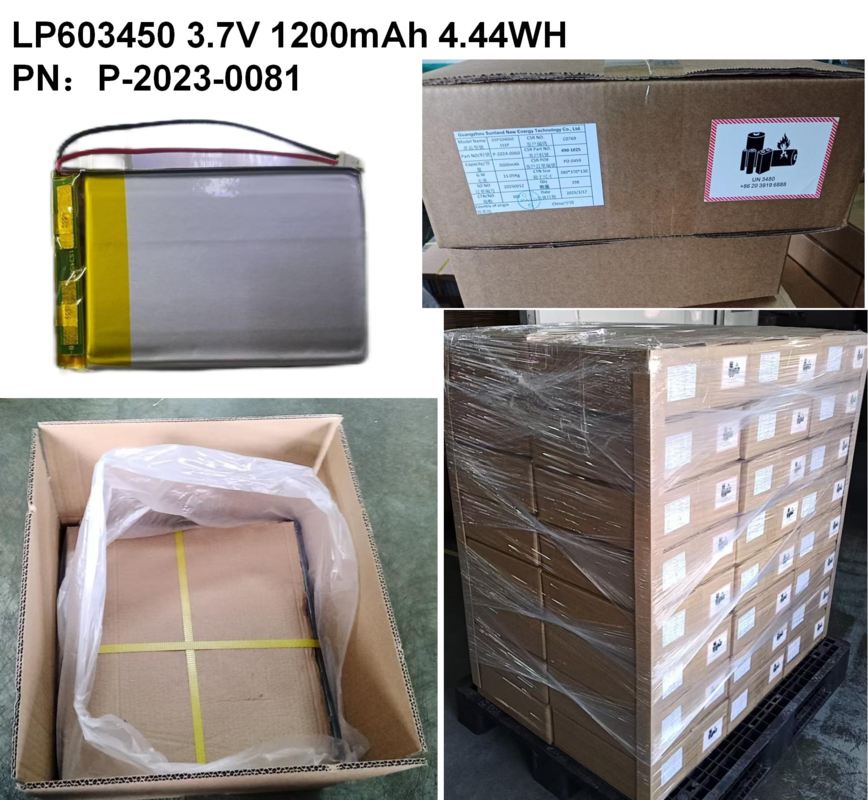

GP603450 3.7V 1200mAh 4.44WH

No.	Items	Specifications	Remark
1	Nominal Capacity	1250mAh	0.2C Standard discharge 0.2C
2	Minimum Capacity	1200mAh	0.2C Standard discharge 0.2C
3	Nominal Voltage	3.7V	Mean Operation Voltage
4	Initial Voltage	3.80V
5	Charge Limited Voltage	4.2V	By standard charge method
5	Charge Upper Limited Voltage	4.2V	By standard charge method
6	Standard charging method	0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C
7	Charge current	0.2C	Standard charge, charge time:6h(Ref)
7	Charge current	0.2C
8	Standard discharging method	0.2C CC discharge to 2.75 V
8	Discharge Lower Limited Voltage	2.75V	By standard discharge method
9	Initial Impedance	≤ 180mΩ	3.7V AC 1KHz measured

Continuous

No.

Items

Specifications

Remark

Maximum charge current

For continuous charging mod

Maximum discharge current

1.0C

For continuous discharge mod

Operation Temperature and relative Humidity Range

(60±25%R.H.)

Charge

0~ 10℃

≤0.2C

Charging at low temperature such as below 0℃, capacity and cycle life will reduce.

10~45℃

≤0.5C

Discharge

-20~0℃

≤0.5C

0~60℃

≤1.0C

Storage temperature at a long time

-20~25℃ 60±25%R.H.

Do not storage exceed halfyear.Must

charge at least once when storage halfyear, and must charge the battery(with protect

circuit) when storage for three months.
