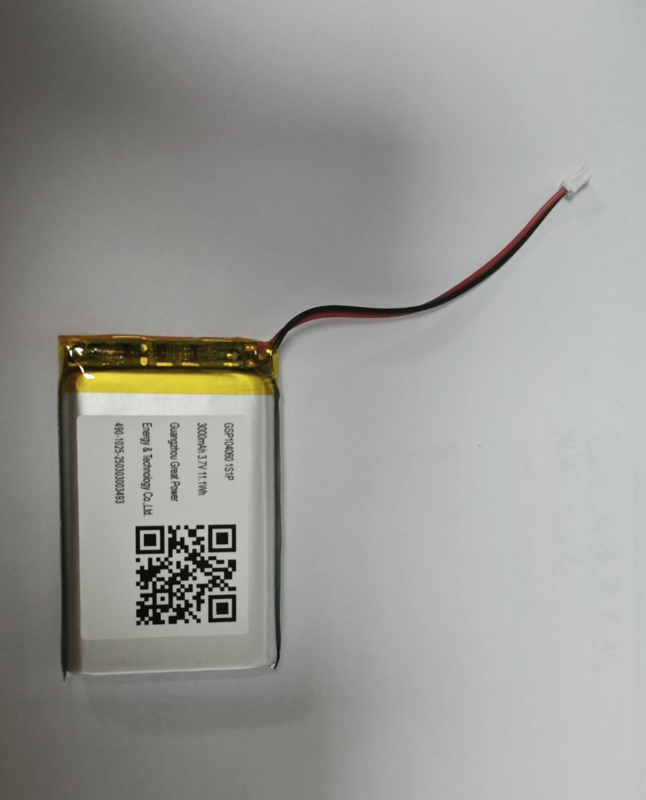

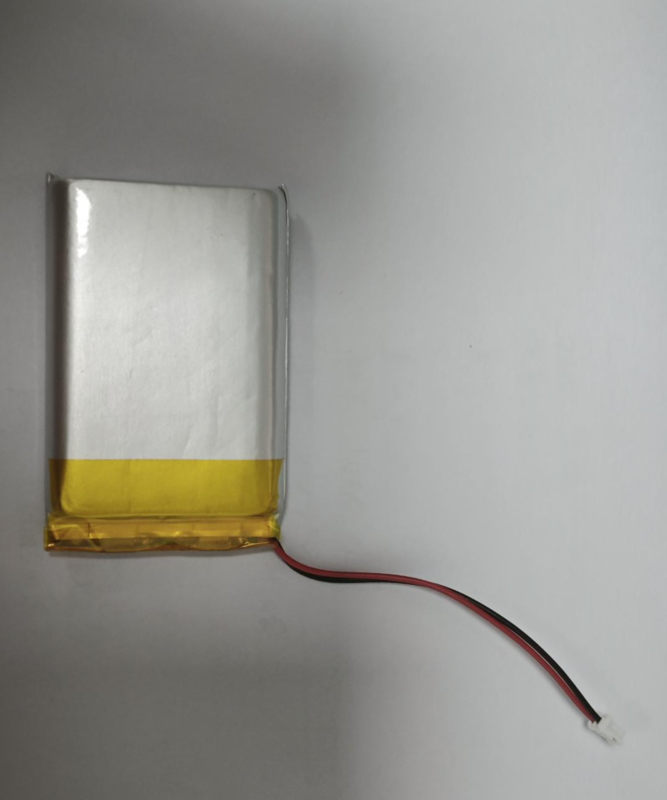

Name: Rechargeable Batteries 3.7V Li Ion Battery GSP104060 3000mAh 3.7V 1S1P
Brand: Helith Technology (Guangzhou) Co., Ltd.
SKU: GSP104060
Price: 263.00 USD
Availability: InStock

Home > Products > Lithium Battery Module >

Rechargeable Batteries 3.7V Li Ion Battery GSP104060 3000mAh 3.7V 1S1P

Place of Origin:

China

Brand Name:

HelithTech

Certification:

GB/T36276 IEC62619 IEC62933 IEC 61000 UL1973 UL9540A UL9540

Model Number:

GSP104060

Request A Quote

Product Details

Rated Capacity:

3000mAh

Nominal Voltage:

3.7V

Delivery Voltage:

3.80 ~3.90V

Limited Charging Voltage:

4.2V

Recommendation Charge Current:

0.2C

End Of Discharge Voltage:

3.0V

ACIR Of Cell:

≤ 45mΩ

Payment & Shipping Terms

Rechargeable Batteries 3.7V Li Ion Battery GSP104060 3000mAh 3.7V 1S1P

Get Best Price

Rechargeable Batteries 3.7V Li Ion Battery GSP052535 3.7V 400mAh+PCM Battery

Get Best Price

50x50x10mm Lithium Battery Module DC 3.3V-5V With I2C UART Communication Interface

Get Best Price

Golf Cart Lithium Battery Module 80A 48V DC Practical Multiscene

Get Best Price

86--18210433140

chase@greatpower.net

86--18210433140

Contact Now

Product Description

GSP104060 1S1P 3000MAH 3.7V

No.	Items	Specifications	Remark
1	Nominal Capacity	3000mAh	0.2C Standard discharge 0.2C
2	Minimum Capacity	2950mAh	0.2C Standard discharge 0.2C
3	Nominal Voltage	3.7V	Mean Operation Voltage
4	Delivery voltage	3.80~3.95V	Within 10 days from Factory
5	Charge Limited Voltage	4.2V	By standard charge method
5	Charge Upper Limited Voltage	4.2V	By standard charge method
6	Standard charging method	0.2C constant current charge to 4.2V, constant voltage charge to 4.2V,continue charging till current decline to ≤0.02C.
7	Charge current	0.2C	Standard charge, charge time:6.5h(Ref)
7	Charge current	0.5C	Rapid Charge, charge time:2.5h(Ref)
8	Standard discharging method	0.2C constant current discharge to 3.0V
8	Discharge Lower Limited Voltage	2.75V	By standard discharge method
9	Cell Internal Impedance	≤ 45mΩ	Internal resistance measured atAC 1KHZ with 50% charge

Continuous

No.

Items

Specifications

Remark

Maximum charge current

0.5C

For continuous charging mod

Maximum discharge current

1.0C

For continuous discharge mod

Operation Temperature and relative Humidity Range

(60±25%R.H.)

Charge

0~ 10℃

≤0.2C

Charging at low temperature such as below 0℃, capacity and cycle life will reduce.

10~45℃

≤0.5C

Discharge

-20~0℃

≤0.5C

0~60℃

≤1.0C

Storage temperature at a long time

-20~25℃ 60±25%R.H.

Do not storage exceed halfyear.Must

charge at least once when storage halfyear, and must charge the battery(with protect

circuit) when storage for three months.
