Place of Origin:
China
Brand Name:
HelithTech
Model Number:
HORIZON 51.2V100Ah
Contact Us
Video
Video
Video

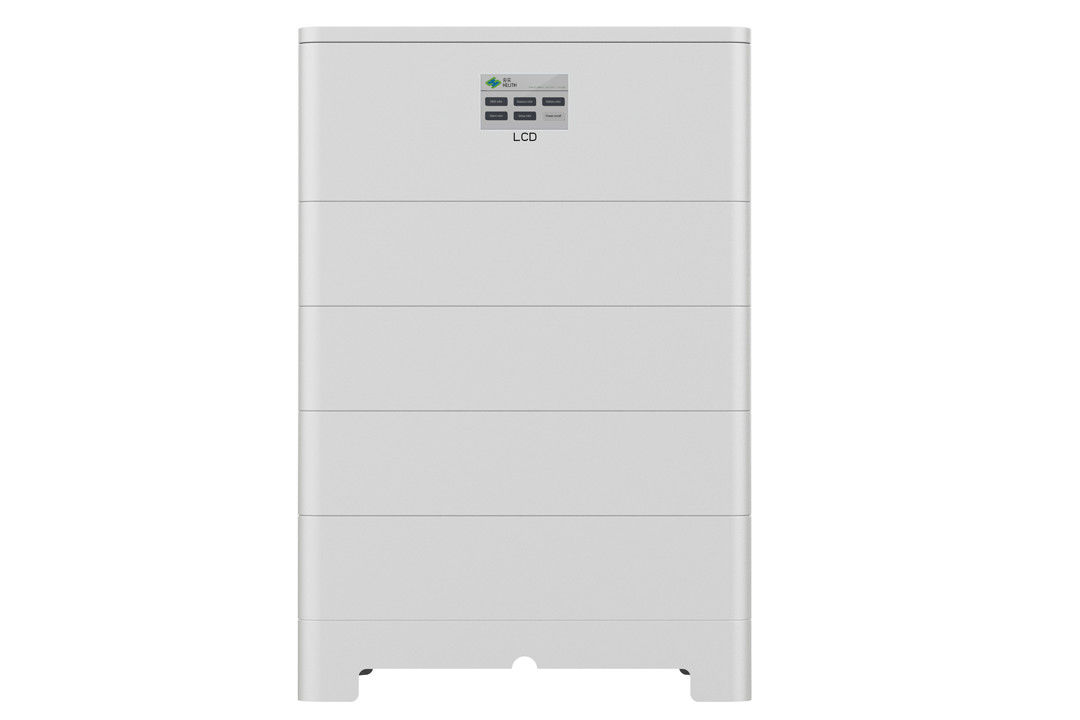

HORIZON 51.2V100Ah is a high-performance lithium iron phosphate (LiFePO ₄) battery designed specifically for home energy storage, industrial and commercial energy storage, and backup power applications. Its high safety, long lifespan, and high energy density make it an ideal choice for modern intelligent energy storage systems.
1,High safety: Using lithium iron phosphate (LiFePO ₄) battery cells, it has strong thermal stability and eliminates the risk of thermal runaway.
2, Long lifespan: ≥ 6000 deep cycles, ensuring efficient operation for 10+years.
3, Intelligent BMS management: Built in intelligent battery management system (BMS), providing overcharge, overdischarge, and short circuit protection, improving service life and safety.
4,High protection level: IP65 protection, suitable for complex environments, can be installed indoors and outdoors.
5,High power output: Supports high current discharge to meet the demands of high-power loads.
6,Strong compatibility: Supports CAN/RS485 communication protocol and adapts to mainstream photovoltaic inverters in the market.
7, Modular Expansion: Supports parallel expansion and flexible combination of energy storage systems with different capacities.
1, Home energy storage: matched with photovoltaic systems, optimizing the proportion of self use and reducing electricity costs.
2, Industrial and commercial energy storage: improve energy utilization efficiency, reduce peak and valley electricity price costs, and optimize load management.
3, Backup power supply: provides stable power to prevent power outages from affecting the operation of critical equipment.
4, Off grid system: suitable for remote areas or areas without power grid coverage, ensuring all-weather power supply.
Rated voltage: 51.2V
Rated capacity: 100Ah
Energy storage capacity: 5.12kWh
Charge and discharge efficiency: ≥ 95%
Maximum charging current: 100A
Maximum discharge current: 100A
Charging cut-off voltage: 58.4V
Discharge cut-off voltage: 44.8V
Working temperature:- 10℃ ~ 55℃
Storage temperature:- 20℃ ~ 45℃
Relative humidity: 5%~95% (without condensation)
Operating altitude: ≤ 2000m
Dimensions: 482mm × 450mm × 222mm
Weight: Approximately 45kg
Protection level: IP65
Chassis material: High strength metal shell
Communication interface: CAN / RS485
Compatible devices: mainstream photovoltaic inverters/household and industrial energy storage systems
Parallel Expansion: Supports multi module parallel connection and flexible expansion
Technical Parameters:
| Parameter | Value |
|---|---|
| Inverter Peak power | 5KW |
| Nominal capacity (kwh) | 5KWh |
| Battery Parameters | 51.2V100Ah |
| Inverter Input/Output AC voltage frequency | 50Hz/60Hz |
| Color | Black/White |
| Dimension (mm) | 710x300x600mm |
| Discharge temperature range | -20~65°C |
| Inverter Rated power | 3.2KW |
| Battery Cell | 3.2v100Ah |
| Installation method | Floor Type With Wheels |
The Home Energy Storage System is packaged in a robust box, with each component securely placed in an individual compartment.
The package is shipped via an insured courier service and includes a tracking number. Delivery is expected to take 3-5 business days.
A1: The brand name of this Home Energy Storage System is HelithTech.
A2: The model number of this Home Energy Storage System is HORIZON 51.2V100Ah.
A3: This Home Energy Storage System is made in China.
A4: This Home Energy Storage System uses lithium-ion batteries.
A5: This Home Energy Storage System provides 51.2V100Ah of energy storage.
