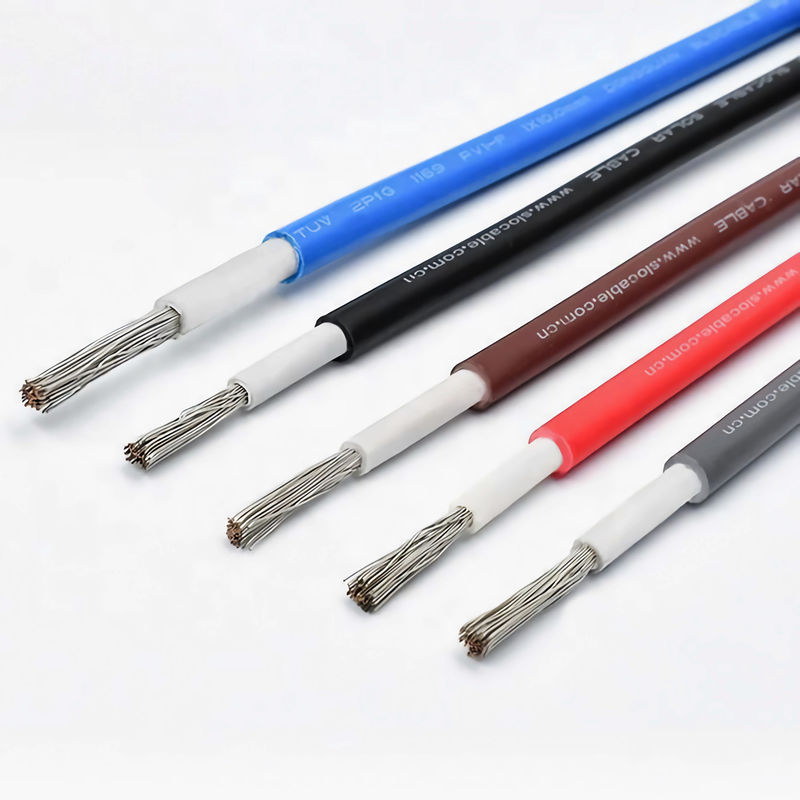

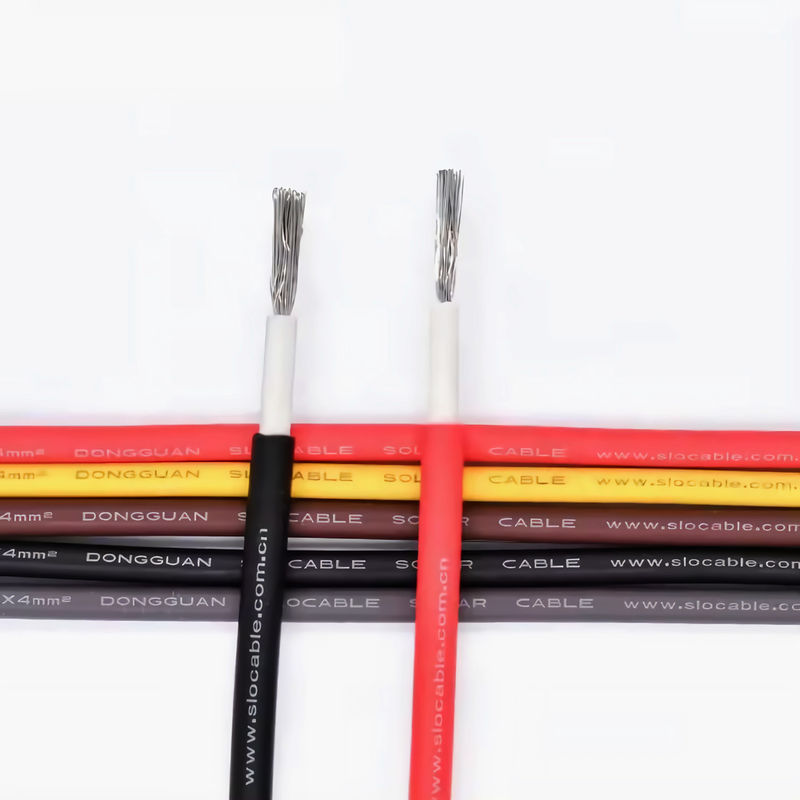

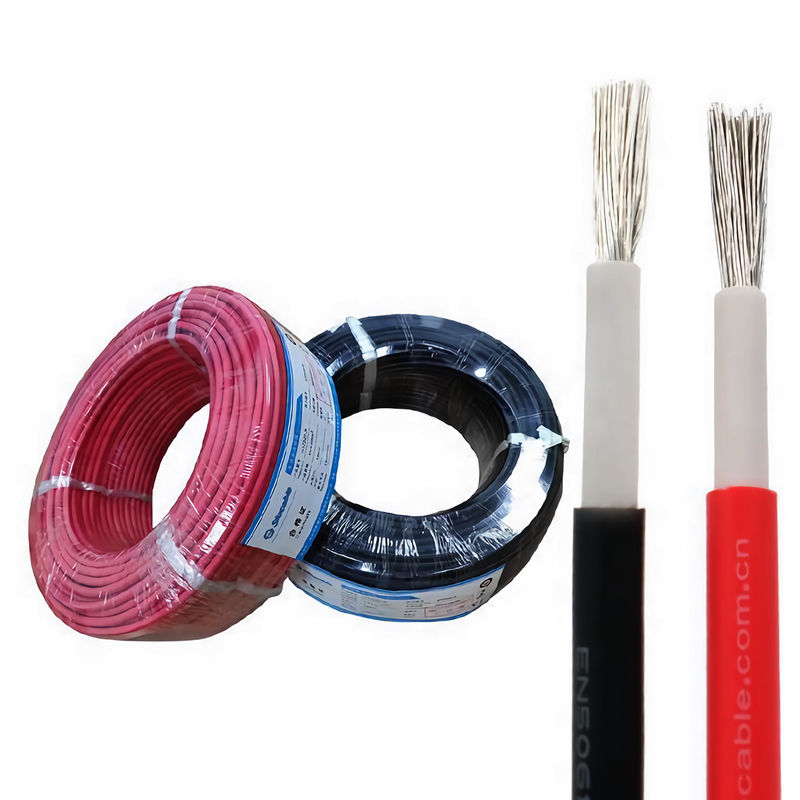

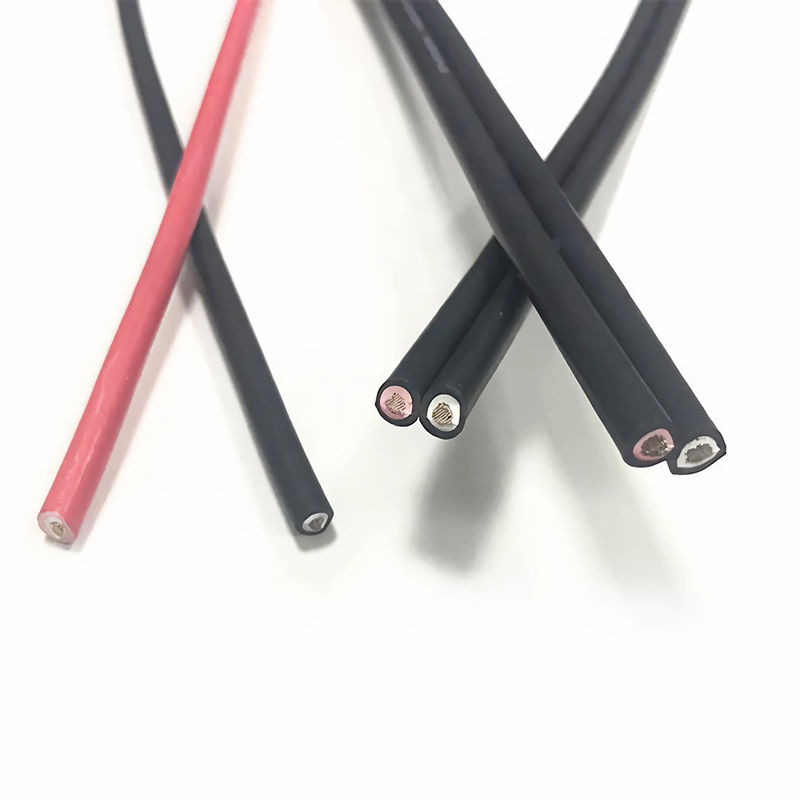

Voltage DC1000V 1500V Copper Cable for PV Systems Flame Tested XLPE Insulation -40.C ~ 90.C

Product Description:

The CA106B/R-EN Solar Cable is a premium accessory designed for a wide range of photovoltaic applications, including grid interconnected solar PV systems, controller charger stations, and DC solar water pumps. This solar cable is engineered to meet the highest standards of durability, efficiency, and safety, making it an ideal choice for both residential and commercial solar installations.

At the core of the CA106B/R-EN Solar Cable is its conductor material, which is made of high-quality copper that has been tin-plated to enhance its resistance to corrosion and to improve its electrical connectivity. The tin plating also provides an additional layer of protection against the harsh environmental conditions often encountered by outdoor solar equipment. The conductor structure is comprised of 81 strands of 0.3mm diameter copper wires, ensuring excellent flexibility and strength for easy installation and long-term reliability.

The jacket of the solar cable is made from XLPE (XLPO), which stands for cross-linked polyethylene. This material is known for its high thermal and chemical stability, which is essential for protecting the cable against the temperature extremes, UV radiation, and moisture that it will be exposed to in outdoor environments. The XLPE jacket not only ensures the longevity of the cable but also guarantees the safety of the solar power system by preventing electrical faults due to insulation degradation.

The CA106B/R-EN Solar Cable is rated for a voltage of up to DC 1000V and 1500V, making it suitable for modern high-voltage solar panels and inverters in grid interconnected solar PV systems. These systems require reliable and efficient cabling to ensure that the DC power generated by the solar panels is transmitted with minimal loss to the inverter, where it is converted to AC power for home, business, or utility use.

In addition to grid interconnected systems, the CA106B/R-EN Solar Cable is also perfectly matched for use in controller charger stations. These stations are critical components in off-grid solar setups, where they regulate the power flow between solar panels, batteries, and loads. The high-quality conductor and robust insulation of the cable ensure that it can handle the fluctuating currents and voltages typical in these applications without compromising performance or safety.

For projects that involve the movement of water, such as irrigation or water supply in remote areas, the CA106B/R-EN Solar Cable is also the ideal choice for DC solar water pumps. These pumps rely on DC power to operate efficiently, and the cable's high voltage rating and durable construction mean that it can reliably connect solar panels to the pump over long distances, even in challenging outdoor conditions.

The design and materials used in the CA106B/R-EN Solar Cable also take into consideration the ease of installation. The flexible conductor structure, combined with the tough yet pliable XLPE jacket, allows for easy routing through tight spaces and around corners without risking damage to the cable. Installers will appreciate the reduced installation time and effort, which can contribute to lower labor costs and expedited project timelines.

In summary, the CA106B/R-EN Solar Cable is a high-performance, versatile solution for a variety of solar power applications. Its superior copper, tin-plated conductor, strong XLPE jacket, and high voltage rating make it the go-to choice for professionals seeking reliable and long-lasting cabling for grid interconnected solar PV systems, controller charger stations, and DC solar water pumps. With the CA106B/R-EN Solar Cable, you can expect a seamless flow of clean energy, ensuring the efficiency and sustainability of your solar power projects.

Features:

• Product Name: Pv Accessories
• Model Number: CA106B/R-EN Solar Cable
• Brand Name: Helith
• Approved: TUV, CE
• Conductor Structure: 81*0.3
• Jacket: XLPE(XLPO)
• Compatible with DC Solar Water Pump
• Suitable for Inverter Charger
• Can be used with AC DC Battery Charger

Technical Parameters:

Applications:

The HelithTech CA106B/R-EN Solar Cable, originating from China, is an essential accessory for anyone engaged in the installation or maintenance of Solar PV Systems. This premium cable is designed to meet the rigorous demands of modern photovoltaic applications, providing reliable and efficient connectivity solutions for solar panels, inverters, and other related equipment. The cable's insulation is made of high-quality XLPE material, which ensures durability and resistance to various environmental factors.

With its remarkable temperature range tolerance of -40℃ to +90℃, the HelithTech solar cable is capable of withstanding extreme weather conditions, maintaining performance whether in hot or cold climates. This makes it an ideal choice for solar installations in a wide range of geographical locations. Whether the solar PV system is set up in a frigid northern region or a sun-scorched desert area, the HelithTech solar cable maintains its integrity and efficiency.

Appropriate for applications that require a high rated current, the HelithTech CA106B/R-EN Solar Cable can handle up to 70A, making it suitable for larger solar systems that need to manage significant power output. The cable is also rated for a high voltage of DC1000V to 1500V for 6mm PV Cable, ensuring compatibility with advanced solar power systems that operate at higher voltages for increased efficiency and reduced energy loss.

When it comes to the safety and longevity of a solar PV system, the HelithTech solar cable's Anti Static PVC properties are indispensable. This feature helps to minimize the risk of static electricity build-up, which can lead to electrical discharges that might damage sensitive electronic components within the solar PV system. The robust construction of the HelithTech solar cable ensures that the system remains safe and operational for many years.

For systems incorporating a 48V Solar Charge Controller, the HelithTech CA106B/R-EN Solar Cable is the perfect accessory to ensure that the connection between the solar panels and the controller is secure and efficient. The cable's ability to handle the necessary current and voltage requirements ensures that the charge controller can function at optimal levels, managing the energy flow from the panels to the battery storage units effectively.

Moreover, the HelithTech solar cable is suitable for integration with a Charge Corona Grid, a system designed to maximize the capture and distribution of solar energy. The cable's specifications make it an excellent conduit for ensuring that the energy harvested by the corona grid is transmitted reliably and safely to the intended storage or conversion devices within the solar PV system.

In summary, the HelithTech CA106B/R-EN Solar Cable is a versatile and reliable choice for any Solar PV System application. Its robust construction, coupled with its high current and voltage ratings, ensures that it provides a secure and efficient connection in various installation scenarios, contributing to the overall performance and longevity of solar power systems around the world.

Customization:

Brand Name: HelithTech

Model Number: CA106B/R-EN Solar cable

Place of Origin: China

Approved: TUV, CE

Temperature Range: -40℃ ~ +90℃

Jacket: XLPE(XLPO)

Conductor Structure: 81*0.3

Application: Solar PV System

Enhance your solar installations with HelithTech's CA106B/R-EN Solar cable, designed to seamlessly integrate with cutting-edge technologies such as the AC DC Hybrid Solar Charge Controller , the highly efficient All In One Solar Charge Controller Inverter , and robust Home Solar Inverter Systems . Manufactured in China and approved by TUV and CE, our solar cable operates within a wide temperature range from -40℃ to +90℃, ensuring reliable performance under diverse environmental conditions. The durable XLPE(XLPO) jacket and precision-engineered 81*0.3 conductor structure provide the assurance of quality and longevity for your Solar PV System.

Support and Services:

Welcome to our Product Technical Support and Services page for PV Accessories. Our dedicated team of experts is committed to providing you with the highest quality of support to ensure the optimum performance of your photovoltaic accessories. We offer a comprehensive range of services designed to address any technical issues you may encounter and to help you maximize the efficiency and longevity of your PV system components.

Our Technical Support includes:

- Troubleshooting assistance to help you diagnose and resolve any product issues.

- Detailed product information and specifications to enhance your understanding of our PV accessories.

- Guidance on proper installation, operation, and maintenance practices to ensure your accessories are used effectively.

In addition to technical support, we provide the following services:

- Warranty support for eligible products, including replacement or repair services.

- Software updates and firmware upgrades to keep your PV accessory software current and fully functional.

- Access to our library of user manuals, installation guides, and FAQs to provide you with the resources you need for self-help.

If you require further assistance, our professional service team is ready to help you with any technical inquiries or challenges you may face. We are dedicated to delivering the support you need to keep your PV accessories operating at their best.

Packing and Shipping:

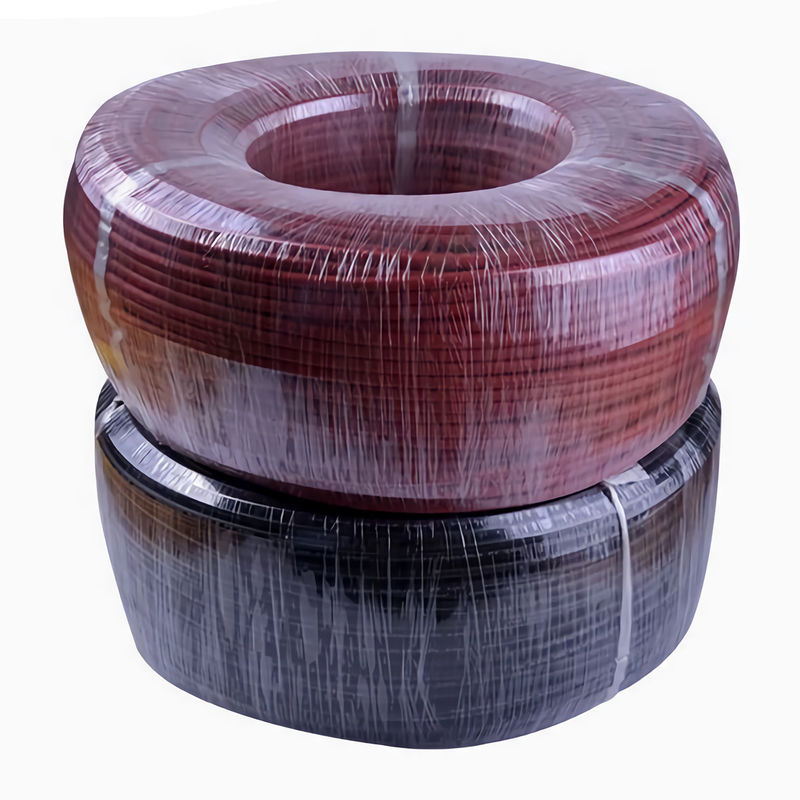

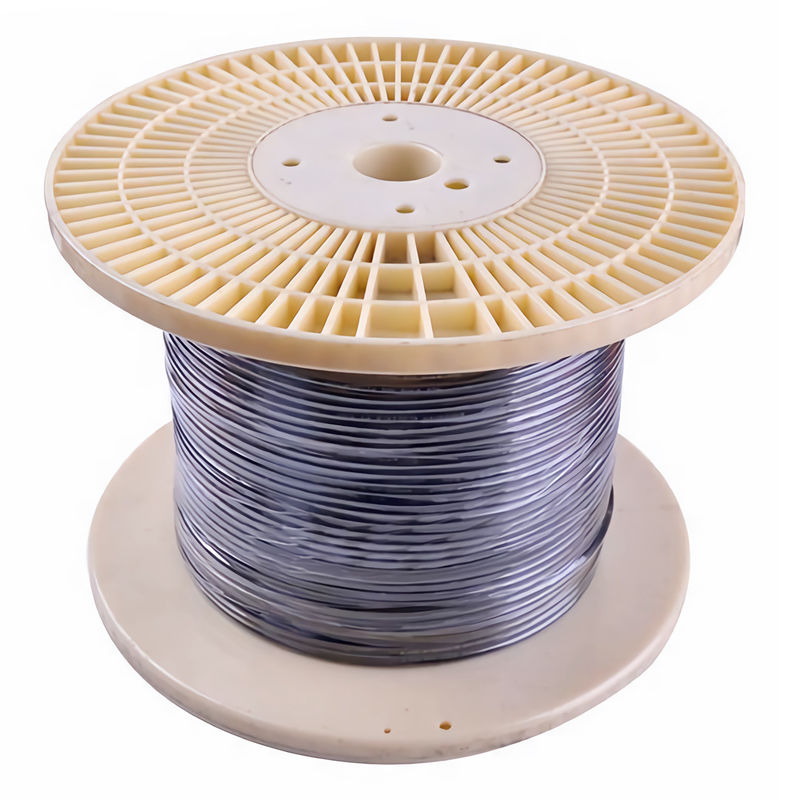

Thank you for choosing our PV Accessories for your solar energy needs. To ensure that your product arrives safely and in perfect condition, we have taken great care in packaging your items. Each accessory is securely wrapped and cushioned with high-quality materials to protect against impact during transit. Additionally, we use environmentally friendly packaging wherever possible, reflecting our commitment to sustainability.

Your order will be shipped using a reliable courier service to provide you with a quick and efficient delivery experience. A tracking number will be provided so you can monitor your package's journey to your doorstep. Please inspect your package upon arrival and report any damage immediately so we can assist with a resolution.

We are dedicated to providing you with exceptional service. If you have any questions or concerns regarding the packaging and shipping of your PV Accessories, please do not hesitate to contact our customer support team. Thank you for your business and support.

FAQ:

Q1: What type of product is the HelithTech CA106B/R-EN Solar cable?

A1: The HelithTech CA106B/R-EN Solar cable is a high-quality solar cable designed to connect photovoltaic (PV) panels and other electrical components in a solar power system.

Q2: Can the HelithTech CA106B/R-EN Solar cable be used for outdoor installations?

A2: Yes, the HelithTech CA106B/R-EN Solar cable is suitable for outdoor installations due to its durable construction and resistance to various environmental conditions including UV radiation and temperature fluctuations.

Q3: What is the origin of the HelithTech CA106B/R-EN Solar cable?

A3: The HelithTech CA106B/R-EN Solar cable is manufactured in China, ensuring adherence to high standards of quality and performance for solar power applications.

Q4: Is the HelithTech CA106B/R-EN Solar cable compatible with all types of PV panels?

A4: The HelithTech CA106B/R-EN Solar cable is designed to be compatible with a wide range of PV panels, but it is always recommended to check the specific requirements of your panels to ensure optimal connectivity.

Q5: Does the HelithTech CA106B/R-EN Solar cable come in different sizes or lengths?

A5: Yes, the HelithTech CA106B/R-EN Solar cable is available in various sizes and lengths to meet the specific needs of your solar power system. Please contact the supplier for more information on available options.
