Place of Origin:
China
Brand Name:
HelithTech
Model Number:
ES 48300
Contact Us

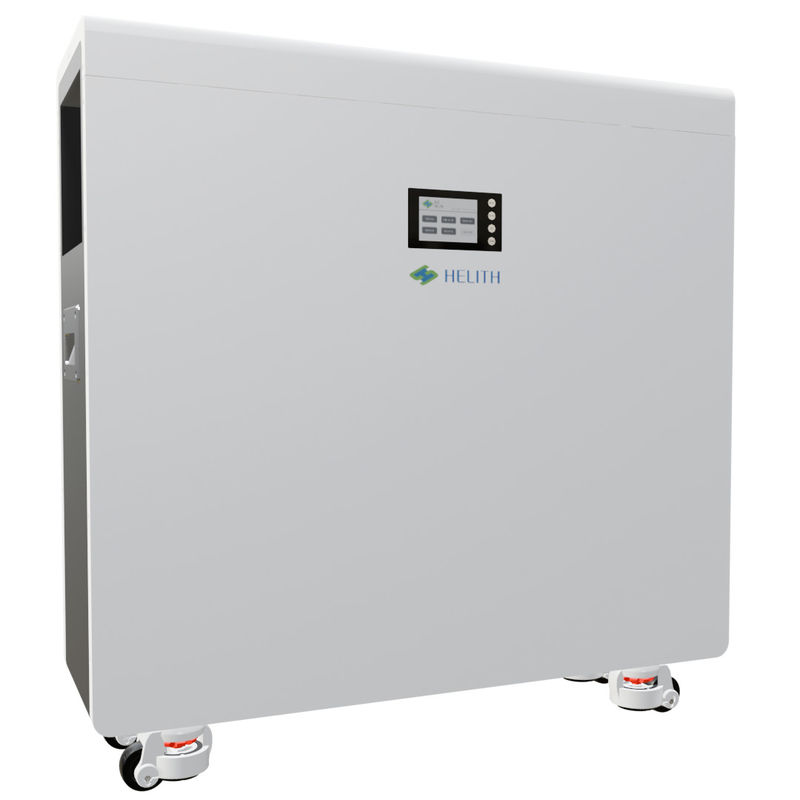

The ES 48300 is a high-capacity LiFePO4 battery designed for home energy storage applications. With a nominal energy of 16080Wh and a cycle life of over 6000 cycles, this floor-standing, durable, and efficient battery ensures reliable power storage and utilization. It is equipped with advanced BMS protection and features a display screen for monitoring, making it a perfect solution for users looking to optimize their energy consumption while ensuring safety and longevity.
| Parameter | Value |
|---|---|
| Model | ES 48300 |
| Nominal Energy | 5120WH |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100AH |
| Cell Type | LiFePO4 |
| Operating Voltage Range | 40V-58.4V |
| Max Charge/Discharge Current | 100A |
| Communication interface | RS485,CAN |
| Cycle Life | >6000 Cycles |
| Battery Display | Display screen |
| Charge Temperature Range | 0~55°C |
| Discharge Temperature Range | -20~55°C |
| Color | White |
| Dimension(mm) | 487x235.3x670 |
| Weight | 51kg |
| Installation method | Wall-mounted / Floor-standing |
| Humidity | ≤95% non-condensing |
| Altitude | ＜2000 m |
| Cooling method | Free Cooling |
Applications:
Q: What is the cycle life of the ES 48300 battery?
A: The ES 48300 has a cycle life of over 6000 cycles, ensuring long-term performance and durability.
Q: What is the temperature range for charging and discharging?
A: The charging temperature range is 0°C to 55°C, and the discharging temperature range is -20°C to 55°C.
Q: Can the ES 48300 be installed outdoors?
A: The ES 48300 is designed for indoor use. For outdoor use, ensure it is protected from extreme weather conditions.
Q: What is the communication interface?
A: The ES 48300 comes with RS485 and CAN communication interfaces for easy integration with energy management systems.
Q: What is the weight of the ES 48300?
A: The ES 48300 weighs 150 kg.
