Hive H25-5 12.8kWh LiFePO4 Stacking Battery, 256V, 5 Modules With High Efficiency & BMS Protection

Product Description:

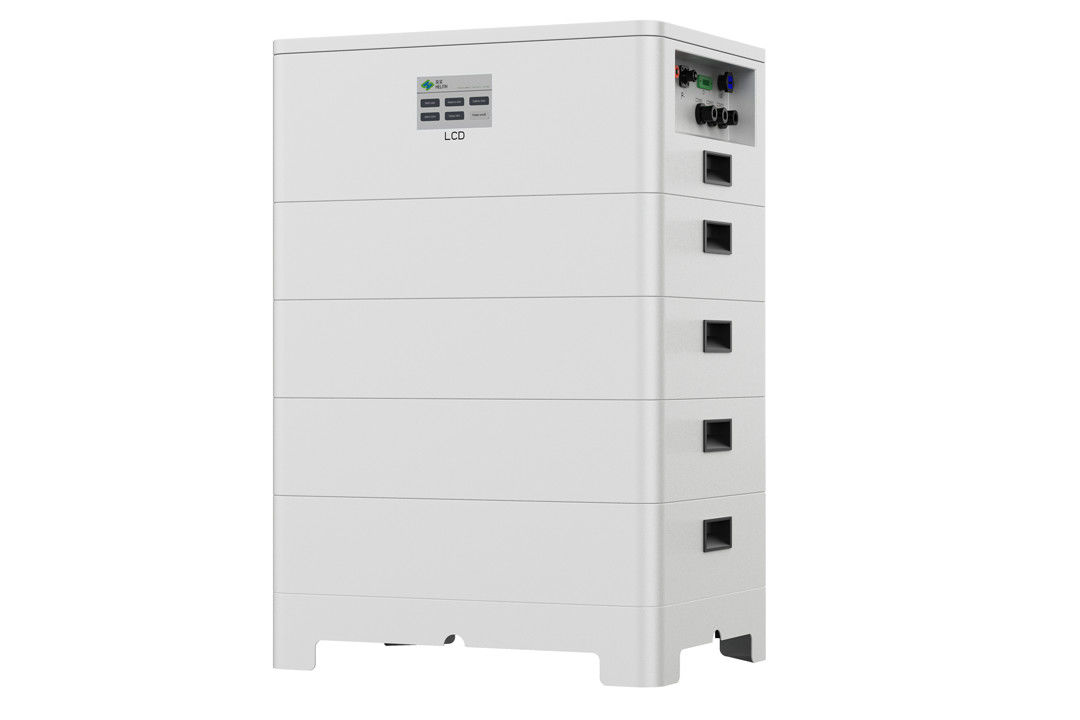

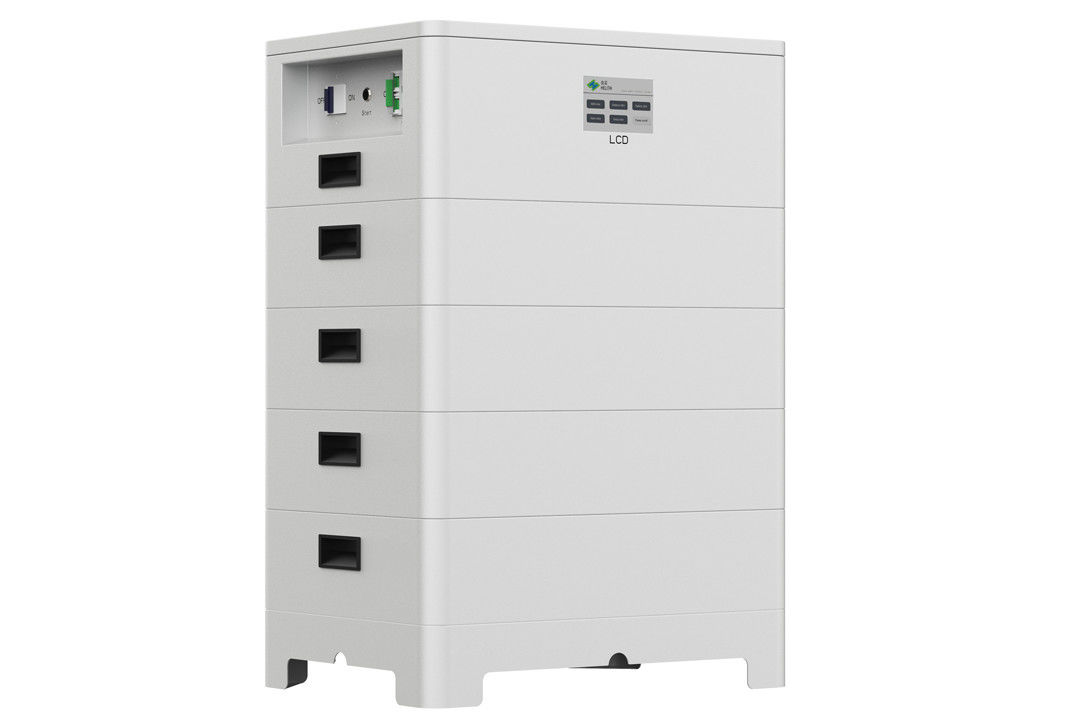

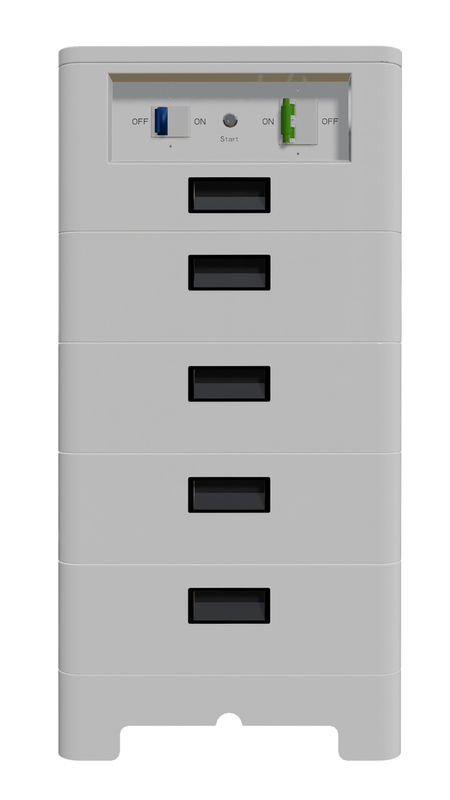

Introducing the Hive H25-5, a high-performance energy storage solution designed by Helith Technology (Guangzhou) Co., Ltd. This advanced LiFePO4 battery pack boasts a nominal capacity of 12.80 kWh and operates at a nominal voltage of 256V, making it ideal for residential and small commercial applications.

Featuring five battery modules, each with a capacity of 2.56 kWh, the Hive H25-5 supports a maximum charge and discharge current of 50A. Its robust design ensures a cycle life of over 6000 cycles at 80% depth of discharge (DOD), guaranteeing long-term reliability and efficiency.

The Hive H25-5 is equipped with a comprehensive Battery Management System (BMS) for enhanced safety and performance. It supports series connection of up to 10 units, allowing for scalable energy solutions. The battery operates efficiently across a wide temperature range, with a charging temperature range of 0-55°C and a discharging range of -20-55°C.

Additional features include a CAN and RS485 communication method, optional LCD display, and a protection level of IP20. With free cooling and the capability to stack from 4 to 10 modules, the Hive H25-5 offers exceptional flexibility and energy efficiency for your needs.

Elevate your energy storage with the Hive H25-5, designed for high performance and reliability.

Features:

• A-Grade LiFePO4 Cells
• Comprehensive BMS Protection
• Series Connection of Up to 10 Units
• High Energy Conversion Efficiency

Technical Parameters:

Advantages of the Hive H25-5 Stackable 12.8kWh LiFePO4 Residential Energy Storage Battery

1. Higher Energy Capacity: With a nominal capacity of 12.8kWh, the Hive H25-5 provides ample energy storage for residential applications, ensuring the uninterrupted operation of household appliances during peak demand, power outages, or emergencies.

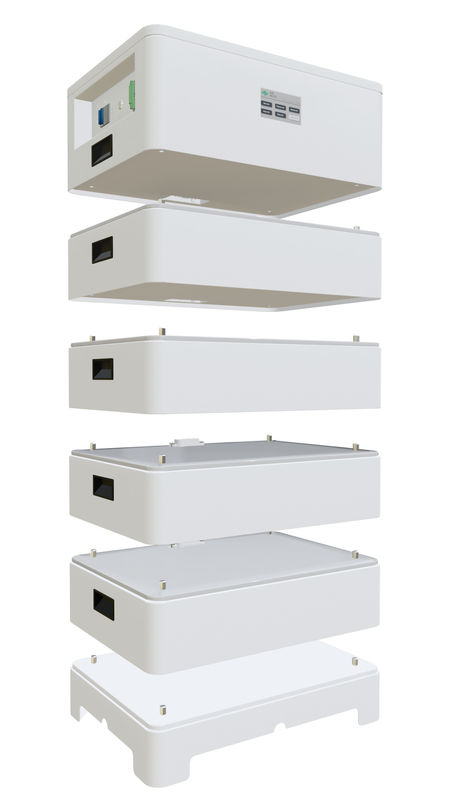

2. Flexible Modular Design: The system supports between 4 to 10 stackable modules, allowing users to easily scale their energy storage as their needs grow. This modularity makes it adaptable for varying energy demands, ensuring long-term scalability.
3. Extended Cycle Life: Offering over 6000 cycles at 80% Depth of Discharge (DOD), the Hive H25-5 delivers a long operational lifespan. This reduces the need for frequent replacements and significantly lowers the total cost of ownership.
4. Enhanced Safety with LiFePO4 Chemistry: The Hive H25-5 utilizes Lithium Iron Phosphate (LiFePO4) cells, known for their superior thermal and chemical stability. This ensures a safer and more reliable solution for residential energy storage, compared to other battery chemistries.
5. Wide Operating Voltage Range: With an operating voltage range of 236V to 284V, the battery ensures stable performance under variable conditions, accommodating diverse energy inputs to maintain smooth functionality.
6. Advanced Communication Capabilities: Equipped with CAN and RS485 communication protocols, the Hive H25-5 integrates seamlessly with energy management systems, enabling real-time monitoring of battery performance, status, and safety features.
7. Temperature Resilience: The battery operates efficiently across a wide temperature range, supporting charging from 0°C to 55°C and discharging from -20°C to 55°C. This makes it suitable for a variety of climates without compromising performance.
8. Eco-Friendly Cooling System: The Hive H25-5 employs a free cooling method, reducing the need for energy-intensive active cooling systems. This enhances energy efficiency while minimizing operational costs, contributing to a more sustainable energy storage solution.
9. Compact and Space-Efficient: With dimensions of 526 x 350 x 990 mm and a stackable design, the Hive H25-5 offers efficient use of space in residential installations, making it ideal even for homes with limited space.

Precautions for Using the Hive H25-5 Battery

1. Professional Installation: Ensure the battery is installed by a certified professional according to the manufacturer’s guidelines. Improper installation can lead to performance issues or safety risks.

2. Monitor Temperature: Although the battery is designed for a wide temperature range, it’s crucial to avoid extreme conditions. Operating outside the recommended range could impact performance or reduce the battery’s lifespan.
- Charging: Charge the battery within 0°C to 55°C.
- Discharging: Avoid discharging the battery below -20°C or above 55°C.

3. Control Humidity: The battery is designed to function optimally in environments with humidity levels below 95%. High humidity or condensation can cause damage or degrade the battery's performance over time.

4. Altitude Considerations: The battery is rated for use at altitudes below 4500 meters. Ensure installation at or below this altitude to avoid performance issues due to changes in atmospheric pressure.

5. Regular Maintenance: Periodically inspect the battery’s physical condition, communication systems (CAN/RS485), and cooling mechanism. Regular checks help identify potential issues early and ensure the battery operates at optimal efficiency.

6. Protection Level (IP20): The Hive H25-5 has an IP20 rating, meaning it is not waterproof or dustproof. Ensure the installation location is dry, dust-free, and well-ventilated to protect the battery from environmental factors.

7. Prevent Overcharging and Overdischarging: While the battery supports a wide voltage range, it is important to adhere to the recommended charge and discharge limits. Exceeding these limits could result in permanent damage or reduce the battery's operational lifespan.

By following these guidelines and utilizing the Hive H25-5’s advanced features, users can maximize safety, efficiency, and longevity, ensuring reliable energy storage for years to come.
